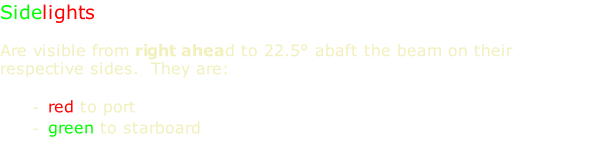

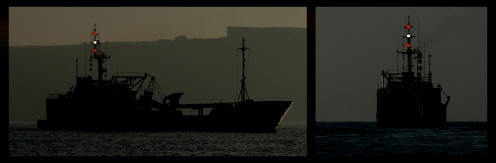

ColRegs Home>ColRegs>Lights & Shapes>Lights General Diagram: Plan of a vessel showing arcs of lights Arcs of Lights Diagram: lights of a power-driven vessel underway seen through binoculars Range of Lights Lights - power-driven vessel underway from ahead Lights General Rule 21 Lights General The rules define lights: masthead sidelight sternlight all-round flashing Masthead Light Is visible from right ahead to 22.5° abaft the beam on each side. It is white back to top Royal Fleet Auxiliary showing masthead lights Sidelights Are visible from right ahead to 22.5° abaft the beam on their respective sides. They are: red to port green to starboard Royal Fleet Auxiliary showing masthead lights and sidelights Sternlight Is visible from right astern to 22.5° abaft the beam on each side. It is white Royal Fleet Auxiliary Showing Sternlight Arcs of Visibility Mean the: sternlight is only visible by itself masthead and sidelights have the same overall arc of visibility Flashing A light flashing at regular intervals at a frequency of 120 flashes or more per minute This “light” flashes at more than 120 flashes per minute Vessel showing lights restricted ability manoeuvre - not making way All-Round Light Shows an unbroken light over an “arc of the horizon” of 360° All-round lights are used in variety of combinations and colours to identify a vessel For example: vessel restricted in ability to manoeuvre and not making way:
